PPS/FH
Continuous use temperature is 200°C/392°F,Flammability is UL94 V-0
PPS (polyphenylene sulfide) is a crystalline super engineering plastic.
It has excellent thermal resistance, and its properties hardly deteriorate even when using for long time under high temperature environment.
Moreover, it has excellent chemical resistance, mechanical properties, electrical properties, and dimensional stability, and it is widely used in electrical and electronic parts, automobiles parts, chemical machinery parts etc.
Use RoHS2 compliant raw materials.
PPS (polyphenylene sulfide) is a crystalline super engineering plastic.
It has excellent thermal resistance, and its properties hardly deteriorate even when using for long time under high temperature environment.
Moreover, it has excellent chemical resistance, mechanical properties, electrical properties, and dimensional stability, and it is widely used in electrical and electronic parts, automobiles parts, chemical machinery parts etc.
Use RoHS2 compliant raw materials.
◆Black spots may occasionally appear on the external surface.

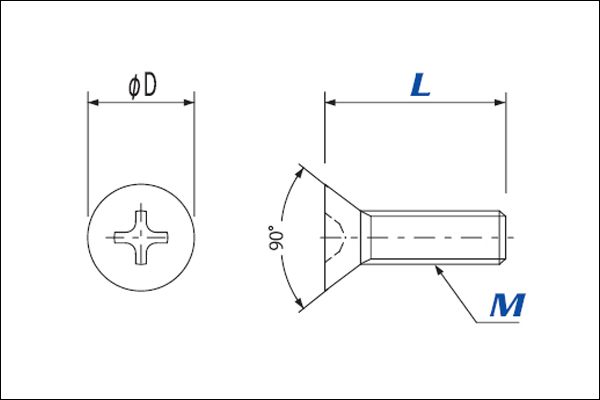

◆Gate residue of screw head is 5% or less for length (L).
◆If screw is used with a nut, we recommend using the screw and nut made of the same material.
◆If screw is used with a female threaded part, we recommend maximum depth of 20 mm.
◆Values in the table are for reference purpose only, and they are not guaranteed values.

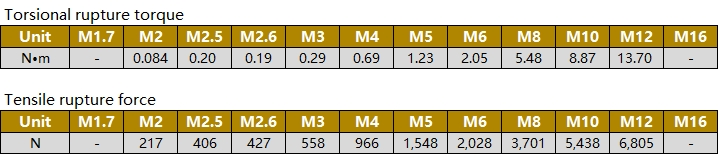

◆Please use torque driver or torque wrench for fastening. Recommended fastening torque is 50% of the torsional rupture torque.
◆Since heat resistance and chemical resistance change based on usage conditions, please test under actual usage conditions beforehand.
◆Discoloration may occur depending on lot and various conditions.
◆Sizes, shapes and manufacturers of raw materials may change without notice.
◆Gate residue of screw head is 5% or less for length (L).
◆If screw is used with a nut, we recommend using the screw and nut made of the same material.
◆If screw is used with a female threaded part, we recommend maximum depth of 20 mm.
◆Values in the table are for reference purpose only, and they are not guaranteed values.
◆Please use torque driver or torque wrench for fastening. Recommended fastening torque is 50% of the torsional rupture torque.
◆Since heat resistance and chemical resistance change based on usage conditions, please test under actual usage conditions beforehand.
◆Discoloration may occur depending on lot and various conditions.
◆Sizes, shapes and manufacturers of raw materials may change without notice.
