PI/W
Continuous use temperature is 300°C/572°F,Flammability is UL94 V-0
Polyimide has excellent heat resistance,excellent abrasion and wear resistance and friction performance under high pressure and high speed scraping
It has low outgas properties under high vacuum state, excellent chemical resistance and machine characteristics, extraordinary dimensional stability (no melting point and glass transition point), as well as low electrical conductivity.
Use RoHS2 compliant raw materials.
Polyimide has excellent heat resistance,excellent abrasion and wear resistance and friction performance under high pressure and high speed scraping
It has low outgas properties under high vacuum state, excellent chemical resistance and machine characteristics, extraordinary dimensional stability (no melting point and glass transition point), as well as low electrical conductivity.
Use RoHS2 compliant raw materials.
◆Black spots may occasionally appear on the external surface.
◆Gate residue of screw head is 5% or less for length (L).
◆If screw is used with a nut, we recommend using the screw and nut made of the same material.
◆If screw is used with a female threaded part, we recommend maximum depth of 20 mm.

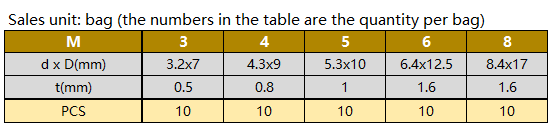

◆Values in the table are for reference purpose only, and they are not guaranteed values.
◆Please use torque driver or torque wrench for fastening. Recommended fastening torque is 50% of the torsional rupture torque.
◆Since heat resistance and chemical resistance change based on usage conditions, please test under actual usage conditions beforehand.
◆Discoloration may occur depending on lot and various conditions.
◆Sizes, shapes and manufacturers of raw materials may change without notice.
◆Gate residue of screw head is 5% or less for length (L).
◆If screw is used with a nut, we recommend using the screw and nut made of the same material.
◆If screw is used with a female threaded part, we recommend maximum depth of 20 mm.
◆Values in the table are for reference purpose only, and they are not guaranteed values.
◆Please use torque driver or torque wrench for fastening. Recommended fastening torque is 50% of the torsional rupture torque.
◆Since heat resistance and chemical resistance change based on usage conditions, please test under actual usage conditions beforehand.
◆Discoloration may occur depending on lot and various conditions.
◆Sizes, shapes and manufacturers of raw materials may change without notice.
