KYOUJIN/BT
Because of over half a century our manufacturing technology, adopted fiber-reinforced thermoplastic resin, know-how and technology of mold design for achieve high strength, KYOUJIN is born.
KYOUJIN is An engineering plastic with PA66 as the base polymer and reinforced with 60% glass fiber.
Continuous use temperature is 65°C/149°F,Flammability is UL94 V-HB
It has the highest strength among engineering plastic bolts that can be mass-produced.The tensile breaking load at M12 reaches 17,492N
Specific gravity is 1/5 of iron, insulating, heat insulating, non-magnetic, and resistant to rust.
Alternative metal screws are widely used in various industries such as robotics, construction, electronics, automobiles, sports, etc.
Use RoHS2 compliant raw materials.
KYOUJIN is An engineering plastic with PA66 as the base polymer and reinforced with 60% glass fiber.
Continuous use temperature is 65°C/149°F,Flammability is UL94 V-HB
It has the highest strength among engineering plastic bolts that can be mass-produced.The tensile breaking load at M12 reaches 17,492N
Specific gravity is 1/5 of iron, insulating, heat insulating, non-magnetic, and resistant to rust.
Alternative metal screws are widely used in various industries such as robotics, construction, electronics, automobiles, sports, etc.
Use RoHS2 compliant raw materials.
◆Black spots may occasionally appear on the external surface.

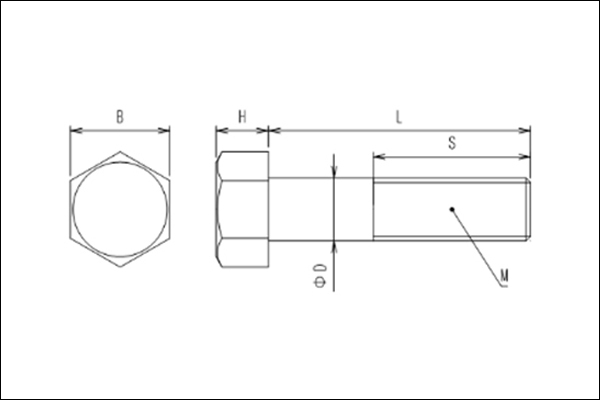

◆Gate residue of screw head is 5% or less for length (L).
◆If screw is used with a nut, we recommend using the screw and nut made of the same material.
◆If screw is used with a female threaded part, we recommend maximum depth of 20 mm.

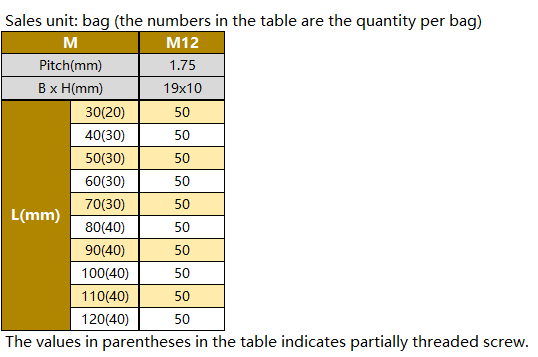

◆Values in the table are for reference purpose only, and they are not guaranteed values.
◆Please use torque driver or torque wrench for fastening. Recommended fastening torque is 50% of the torsional rupture torque.
◆Since heat resistance and chemical resistance change based on usage conditions, please test under actual usage conditions beforehand.
◆Discoloration may occur depending on lot and various conditions.
◆Sizes, shapes and manufacturers of raw materials may change without notice.
◆Gate residue of screw head is 5% or less for length (L).
◆If screw is used with a nut, we recommend using the screw and nut made of the same material.
◆If screw is used with a female threaded part, we recommend maximum depth of 20 mm.
◆Values in the table are for reference purpose only, and they are not guaranteed values.
◆Please use torque driver or torque wrench for fastening. Recommended fastening torque is 50% of the torsional rupture torque.
◆Since heat resistance and chemical resistance change based on usage conditions, please test under actual usage conditions beforehand.
◆Discoloration may occur depending on lot and various conditions.
◆Sizes, shapes and manufacturers of raw materials may change without notice.
